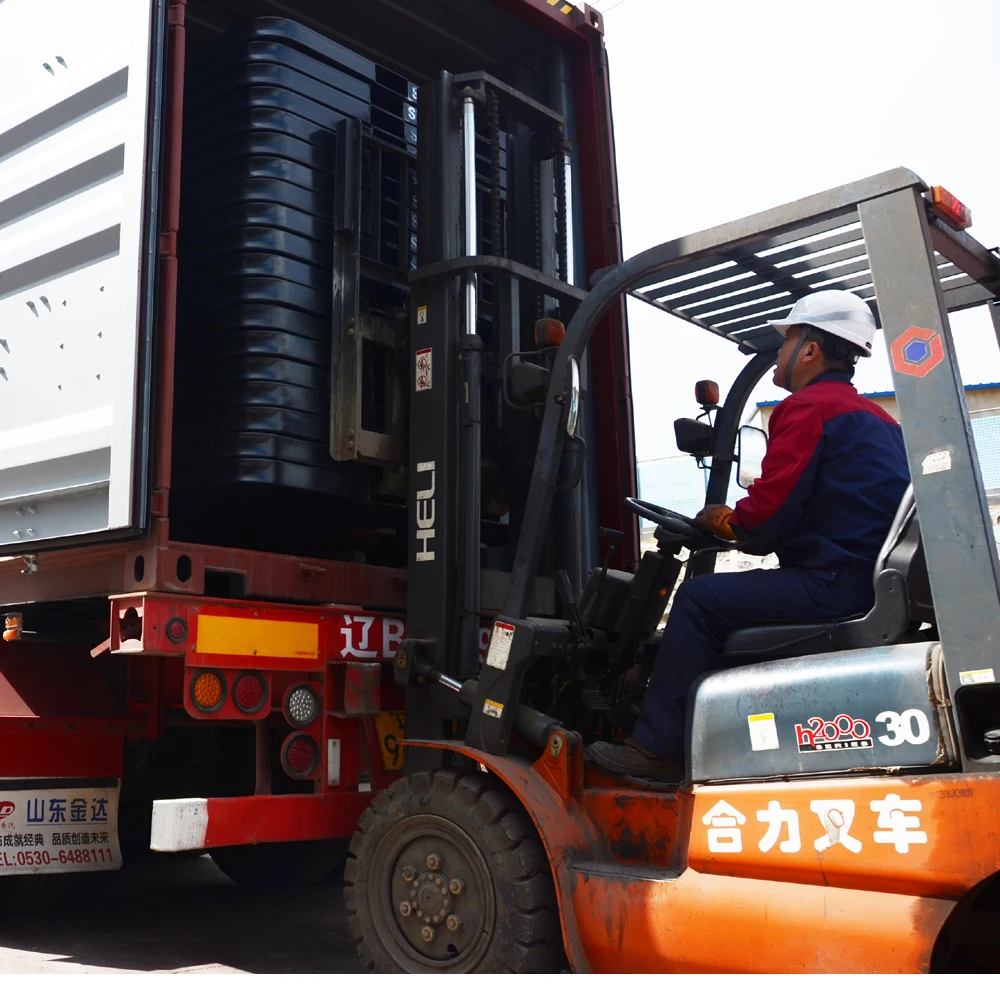

Goods can be packaged in following methods: 1. Package by wooden case 2. Package by pallet packing tape and stretch film. 3. Package by packing tape and stretch film.4.package by carton.We can reply to you the specific quantity of containers within 2 hours according to the standard of ISO container. We can provide customization according to clients demands.
The steel box is mainly composed of a base plate, a side door, a front door and a baxk door. There is a waist-shaped hole on the pillar which realize sliding and folding of the side door as well as connecting the side door and the base. The back door is an integrated structure which hangs between the two side doors. The foldable front door, with a semi-embedded latch, may implement loading and unloading under stacking condition.
Steel Box Characteristic I
It's suitable for the tridmensional storage of scattered material.
Steel Box Characteristic II
Materials of the base plate can use grid or plate according to the size of good to prevent it from losting.
Steel Box Characteristic III
Materials of the four doors can use grid or plate according to the size of good to prevent it from losting.
Steel Box Characteristic IV
Skillful door design, convenience to load and unload under stacking condition.
Steel Box Characteristic V
Using folklift to stack the racks, increasing utility rate of space.
Steel Box Characteristic VI
The trundles can be added to the base to facilitate the transfer of materials between different processes.
Steel Box Characteristic VII
The retractor can be added to the base to achieve safety turnover of multiple steel grid boxes.
Steel Box Characteristic VIII
The steel boxes can be used together with storage racks.
Steel Box Characteristic IX
Stacking can come true at full load (with or without wheels). It's convenient for storage and transportation.
Steel Box Characteristic X
It can be folded and stacked under the empty state (with or without wheels). It's convenient for storage and transportation.
The bearing capacity of the base is 1.5 tons, and the maximum stress is186Mpa, which is the stress concentration point. It is located at the weld joint between the support leg and the frame of the base. Most of the rest of the stress is no bigger than 52Mpa, and the allowable stress is less than 235Mpa.
The above figure shows that under the condition of three layers of foldable box, the stress of the bottom layer foldable box column is158Mpa.The yield stress value of the material is less than 235Mpa.
+86 139 4234 1906
No.28-2, Block 1, Pacific Industrial Zone, Fushun 113000 China
1. Q: Where is your factory located? How can I visit there? A: Our factory is located in Fushun City, Liaoning Province, China, close to Shenyang City. You can fly to Shenyang airport directly. You are warmly welcome to visit us whenever you are available!
2. Q: What is the raw material of your products? A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
3. Q: What is the term of payment? A: As general, 30% T/T down payment and balance before shipping.
4. Q: What is delivery time? A: It depends on the order quantity and product types. As general, within 25 working days, for ordinary order quantity..
5. Q: Which port will be used as loading port? A: Dalian port
6. Q: May I know the status of my order? A: Yes. We will send you information and photos at different production stage of your order.
7. Q: Are sample order available? A: Yes, sure!
8. Q: Is Galvanized Finish available? A: Yes.
9. Q: How can I get your quick quotation? A: As different clients and projects have different needs of product dimensions and specification, as general, for quick quotation, we need to know following info:
Required Pallet Dimension:Height*Depth*Length? Required Weight of Pallet? Required Pallet Used on Racking or Stacked Directly? Stacking Layers? What is the Bearing Goods and Unit Weight? Required Pallet Quantity? Other questions?
If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.
